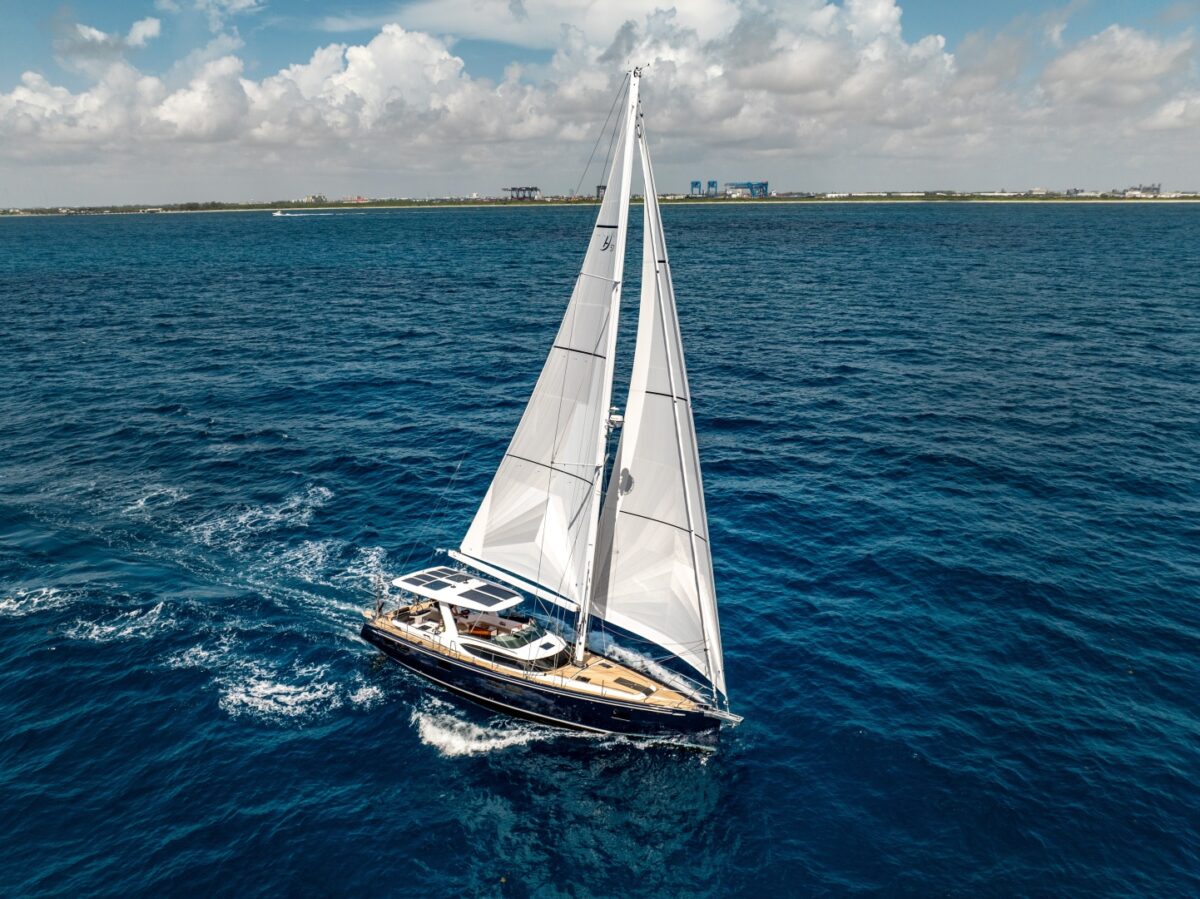

2027 Hylas H57 — H57-10

The new Hylas H57 Hull #10 represents the latest evolution of Hylas’ modern bluewater cruising yacht, combining Bill Dixon’s performance-oriented hull design with the exceptional construction, systems engineering, and attention to detail for which Hylas is known. Nearing completion and scheduled to arrive this fall, Hull #10 offers the opportunity to own a new H57 without the lengthy wait normally associated with a custom-built offshore cruising yacht.

Designed from the outset for safe and manageable short-handed sailing, the H57 combines twin helm stations and twin rudders with a powerful Solent rig and highly automated sail handling. Hydraulic furling and electric winches allow the primary sail controls to be handled from the cockpit, while the self-tacking jib makes routine maneuvering remarkably straightforward for a yacht of this size. The result is a yacht capable of serious offshore passagemaking without requiring a large crew.

Hull #10 has been particularly well specified for extended cruising. Her electrical system is centered around an 800Ah Victron lithium house bank supported by a 12kW Northern Lights generator, providing substantial capacity for comfortable life aboard. Bow and retractable stern thrusters make close-quarters maneuvering considerably easier, while the upgraded Garmin navigation package provides comprehensive navigation and vessel information at the helms and navigation station.

At anchor, a hydraulic folding swim platform with expanding aft-deck wings transforms the stern into a large waterside living area. Heavy-duty 300kg Simpson davits provide a practical solution for carrying a substantial cruising tender while keeping it readily accessible.

Below deck, the H57 takes full advantage of her 17-foot beam and extensive hull and saloon glazing to create an exceptionally bright and spacious interior. The three-cabin arrangement features a full-beam aft owner’s stateroom, forward VIP cabin, versatile third cabin, two heads with separate showers, a passageway galley, and a dedicated forward-facing navigation station. Extensive storage and excellent access to machinery and systems reflect the yacht’s purpose as a genuine long-range cruising platform.

Finished in classic factory white gelcoat and equipped with a shoal-draft keel, Hull #10 combines offshore capability with the flexibility to cruise destinations where deeper-draft yachts may be restricted.

The Hylas H57 is built for owners who intend to use their yacht—not simply admire it at the dock. Hull #10 combines performance, short-handed sailing capability, thoughtful systems engineering, luxurious accommodations, and serious passagemaking credentials in a yacht designed to take her owners comfortably across oceans or through years of independent cruising.

Full details

Accommodation

Three-cabin, two-head interior featuring a full-beam aft master stateroom with centerline queen berth and private head with separate stall shower, a forward VIP cabin with centerline double berth, and a forward guest cabin with single berth to starboard. The forward head, also featuring a separate stall shower, is accessible from both the forward VIP cabin and passageway for use as a day head. The layout includes a passageway galley to starboard and forward-facing navigation station to port.

Interior Comforts and Amenities

• (3) cabin, (2) head interior with aft master stateroom, forward VIP cabin and starboard forward guest cabin
• Full-beam aft master stateroom with centerline queen berth
• Private master head with separate stall shower
• Forward VIP cabin with centerline double berth
• Starboard forward guest cabin with single berth and work/storage area
• Forward head with separate stall shower and access from both VIP cabin and passageway for use as a day head
• Passageway galley to starboard
• Forward-facing navigation station to port
• Contemporary interior with square-top passageways, doors, cabinets and lockers with flush, flat white oak panels
• Non-skid wood cabin sole with epoxy-sealed end grains
• Hand-selected interior joinery and cabinetry
• Noise-dampening gaskets on passageway door frames
• Positive-locking cabin sole sections
• Furniture-grade stainless steel cabinet and locker latches
• Stainless steel locking door stops
• Contemporary white headliner with secure quick-access fastening and wood trim
• Hylas-selected fabric head wall panels
• Hylas-selected fabric headboards
• Hylas-selected fabric saloon, navigation station and cabin settee upholstery
• Companionway stair protection carpet
• (12) white Caframo Bora 24V cabin fans
• (46) BCM Malibu overhead lights
• (2) BCM Orlando overhead lights
• BCM Philly-I reading light
• (6) BCM Maestra-I reading lights
• (4) BCM Dallas interior courtesy lights
• (5) LED diffused rope lights
• LED diffused accent lighting at saloon steps, companionway steps, saloon settees, master stateroom, VIP cabin, guest cabin and galley
• LED diffused valance lighting in saloon, galley, master stateroom, VIP cabin and heads
• Black leather BCM Stilo Side navigation-station chart light

Master Stateroom

• Centerline queen berth
• Drawers port and starboard beneath berth
• Storage cabinets to port and starboard
• Extra-large cedar-lined hanging lockers port and starboard
• Nightstands with fiddled surfaces on both sides of berth
• Mirror-faced aft head door

Master Head

• Raritan Marine Elegance #221HF02401 24V electric toilet with sea/freshwater inlet
• Dometic Sealand TW Series 24V premium macerator pump
• White fiberglass head base
• Hi-Macs G113 Iceberg countertop with wood fiddles
• Hylas-designed white sink
• Dornbracht sink faucet
• Mirror-faced medicine cabinet
• Double-door cabinet below sink
• Teak floor
• Separate stall shower with tempered-glass shower door
• Molded fiberglass shower seat
• Varnished teak shower floor
• Keuco shower fixture with #59551 shower head and #59587 shower set
• Keuco Moll Collection towel rack
• Keuco Moll Collection towel hook
• Keuco Moll Collection toilet paper holder
• Second engine-room access door
• Tall cabinet adjacent to second engine-room door

Galley

• Ocean Chef G1010G 3-burner stove/oven with glass door
• Hi-Macs G113 Iceberg countertops with wood fiddles
• GN Espace Gastronorm A large galley sink compatible with Gastronorm accessories
• Dornbracht galley faucet
• Vitrifrigo DW360 BTX refrigerator/freezer with 5.5 cu. ft. upper refrigerator and 5.1 cu. ft. lower freezer
• Steelock flush refrigerator/freezer latches
• Panasonic NN-CD87KS Home Chef 4-in-1 microwave with air fryer, convection bake, broiler and inverter, or similar
• Overhead galley storage cabinets
• Seagull X-2KF drinking-water filtration system with ice-maker plumbing

Main Saloon

• (5) panoramic 3D laminated curved safety-glass windows with carbon-fiber reinforced frame
• Port aft-facing lounge seat
• Starboard double aft-facing lounge seat
• Varnished solid oak saloon table with (2) folding leaves
• Port and starboard fiddled end tables
• Port and starboard overhead cabinets
• Extensive storage beneath settees and lounge seats
• Top-access storage in end tables
• Stainless steel handhold with leather wrap on forward bulkhead
• (2) full-length overhead stainless steel handholds with leather wrap
• Manual lifting mechanism converts dining table to coffee table
• 5-step companionway staircase with non-skid treads and leather-wrapped stainless steel handrails

Navigation Station

• Forward-facing navigation desk with folding chart table
• Upholstered bench seat
• Hinged instrument panel with fast-pin access
• Hinged electrical panel with fast-pin access
• Chart light
• 12V DC outlet

Forward Guest Cabin

• Single berth with storage beneath
• Forward storage area designed for potential washer/dryer installation
• Hydraulic-system ventilation and fan
• Overhead locker inboard of berth
• Cedar-lined hanging locker
• Stainless steel protection plate/work surface

Forward VIP Cabin

• Centerline double berth with top-loading storage beneath
• Drawer beneath berth
• Cedar-lined hanging lockers port and starboard
• Large outboard overhead cabinets
• Fiddled wood surfaces outboard of berth
• Mirror-faced aft head door

Forward Head

• Raritan Marine Elegance #220HS02401 24V electric toilet with sea/freshwater inlet
• Dometic Sealand TW Series 24V premium macerator pump
• White fiberglass head base
• Hi-Macs G113 Iceberg countertop
• Hylas-designed white sink
• Dornbracht sink faucet
• Mirror-faced medicine cabinet
• Double-door cabinet below sink
• Teak floor
• Separate stall shower with tempered-glass shower door
• Molded fiberglass shower seat
• Varnished teak shower floor
• Keuco shower fixture with #59551 shower head and #59587 shower set
• Polished chrome Keuco Moll Collection towel rack
• Polished chrome Keuco Moll Collection towel hook
• Polished chrome Keuco Moll Collection toilet paper holder

Electronics and Navigation

• Garmin GPSMAP 8616 multifunction chartplotters with mapping at both helms
• Garmin GRID 20 remote keypads at both helms
• Additional Garmin chartplotter at navigation station
• Garmin GMR Fantom 18x dome radar
• (3) Garmin TD 50 touchscreen displays at companionway
• Garmin TD 50 touchscreen display at each helm
• (2) Garmin GHC 50 autopilot control displays, (1) at each helm
• (2) Jefa 17-DUT-S624 transmission autopilot drive units
• Garmin GA 38 GPS antenna
• 5″ Ritchie Globemaster FD-500-EP flush-mounted compass with red LED backlighting
• Maretron system for deck lighting and sailing-mode switching
• Garmin VHF 315 marine VHF with AIS receiver
• Garmin GHS 11 wired VHF handset at helm
• Garmin AIS 800 black-box AIS transceiver
• Speco 5″ x 8″ weatherproof PA/loudhailer speaker mounted on mast
• Fusion RA770 stereo with AM/FM, Bluetooth, SiriusXM and auxiliary input
• Sony XM-N502 amplifier
• Stereo speakers in master stateroom, saloon and hardtop
• Saloon pre-wired for electric TV lift, accommodating approximately 43″ television
• Master stateroom pre-wired for wall-mounted television, accommodating approximately 65″ television

Electrical Systems

AC Power System

• 50A shore power connection at bow with access plate over anchor locker and outlet in sail locker
• Bridgeport Magnetics Dual MP6 50/60Hz, 12kVA/50A automatic voltage-boost system
• Northern Lights 12kW generator
• Northern Lights generator water separator
• Dedicated Racor 500 generator fuel/water separator with flame guard
• Generator control panel at navigation station
• Victron MultiPlus 24/3000/70-50 120V inverter/charger system
• Newmar PT-24-95U 50/60Hz charger
• Victron Phoenix Charger 12/50 (2+1), 120-240V, for 12V service, engine-start and generator-start batteries
• (9) Vimar 110V AC dual outlets
• (5) Vimar 110V GFCI-protected outlets
• Weatherproof exterior Vimar 110V GFCI outlets in forward sail locker and transom garage

DC Battery Banks

• 24V Victron lithium house bank consisting of (4) 200Ah batteries for 800Ah total capacity
• Dedicated 12V Lifeline GPL-27T 100Ah AGM engine-start battery
• Dedicated 12V Lifeline GPL-24T 80Ah AGM generator-start battery
• Dedicated 12V Lifeline GPL-8DL 125Ah AGM service battery

DC Charging

• Mastervolt 24V 110A high-output primary alternator with 3-stage regulator dedicated to house bank
• Secondary 12V 180A alternator for service, engine-start and generator-start batteries
• Victron Orion-Tr Smart 24/12-30 360W DC-DC charger for 12V service bank

DC Distribution and Switching

• Hylas Signature electrical distribution panel with hinged component access
• BEP Marine AC and DC system monitors
• BEP Heavy-Duty main battery switches for 12V and 24V circuits
• Blue Sea Systems ML-RBS remote battery isolator switches for bow thruster, engine, windlass, electric winches and generator circuits
• Blue Sea Systems e-Series 12V service-to-battery-bank parallel switch for emergency starting
• (2) Marinco 12V DC outlets

Wiring, Grounding and Installation

• Organized electrical architecture using high-quality tinned copper wiring specified for minimal voltage drop
• Electrical wiring numerically labeled and traceable from source to load
• Wiring labeled at both ends throughout yacht
• Copper grounding strips running the length of the hull and incorporated into the yacht’s bonding system

Lighting

• (4) engine-room utility lights
• Forward sail-locker utility light
• (3) lazarette utility lights
• Transom-garage utility light
• Port and starboard LED Lopolight red/green navigation lights
• Lopolight LED white stern light with 2 NM visibility
• LED Lopolight steaming light
• LED 360-degree white anchor light
• LED tricolor masthead light
• LED foredeck light
• (4) transom courtesy lights
• (4) cockpit-well courtesy lights
• (4) cockpit-helm courtesy lights
• (8) warm-white toe-rail courtesy lights
• (8) red/warm-white BCM Malibu hardtop ceiling lights with dimmers
• Pair of Quick CLG EVO 30W cool-white/blue through-hull underwater LED lights with dedicated switch

Deck and Hull Equipment

Hull and Keel

• Factory white gelcoat hull
• E-glass fiberglass hull laminates with closed-cell foam core, vacuum infused for controlled resin-to-fiber ratio
• Solid multiaxial fiberglass reinforcement and backing plates at V1 and D1 chainplates
• Hylas Signature watertight bow and stern sections
• Structurally reinforced and sealed forward collision bulkhead
• Segmented and sealed full-beam lazarette and stern locker
• Limber holes throughout hull for drainage to bilge sump
• High-quality below-waterline thru-hulls, seacocks and valves
• (5) coats of epoxy barrier coating
• (12) oversized flush-mounted hull portlights
• SSB grounding plane incorporated into hull
• Full-spectrum finished-hull inspection and analysis
• Rub rail with 316 stainless steel striker
• Red Micron Extra 2 antifouling, (3) coats
• Off-white Alexseal cove stripe
• Off-white Alexseal boot stripe
• Shoal-draft 6’5″ external solid lead keel with 3% antimony
• (14) M30 and (2) M16 stainless steel keel bolts
• Transverse-mounted 16mm keel backing plates

Deck Construction

• Hand-laid E-glass fiberglass deck with Airex closed-cell foam core and vinylester resin
• Carbon structural reinforcement incorporated into deck
• Solid single-skin laminate replacing core at high-load hardware locations
• White isophthalic gelcoat deck finish
• Substantial recessed hull-to-deck flange with multiaxial fiberglass reinforcement, 5200 adhesive and inner/outer laminate bonding
• Molded fiberglass cap rail with raised bulwark
• (12) 12.6″ Seasmart pop-up deck cleats with substantial backing
• 32″ high, 1-1/4″ diameter 316L stainless steel stanchions
• Port and starboard boarding gates
• Lifering mounting bracket integrated into port stanchion
• Stainless steel foredeck and full-length coachroof handrails
• Port and starboard fold-down stainless steel boarding ladders with teak steps
• Hylas Signature stern quarter seats with 316 stainless steel frames and varnished teak slats
• Teak deck
• Hylas Signature 316 stainless steel pushpit extending to midship gates
• Simpson Series 10 S300 davits rated to 300kg safe working load
• Dyneema davit lifting lines
• Custom tender lifting bridle
• Stainless steel davit bases

Transom and Swim Platform

• Hydraulic automated folding fiberglass swim platform
• Folding aft-deck wings expand usable aft deck when swim platform is stowed
• Stainless steel opening transom gate
• Pair of 7″ aluminum Seasmart cleats integrated with platform
• Dinghy guard plate on aft edge of swim platform
• Single pushpit lifeline gate
• Stainless steel boarding handrails
• Stainless steel folding swim ladder
• Port-side flagpole
• Large transom garage

Center Cockpit

• Center cockpit with twin helm stations and separate cockpit lounge
• Twin 39″ 5-spoke black Carbonautica composite steering wheels
• Extendable folding cockpit table with (2) handrails
• Cockpit cubbies with fiddles for winch handles
• Bonded 3/8″ solid teak cockpit sole and seating surfaces
• Varnished solid teak cockpit lounge table
• Insulated top-access fiberglass beverage cooler
• Sliding companionway hatch
• Stainless steel companionway handrails
• Oversized self-bailing cockpit scuppers
• Stainless steel folding tether padeyes at companionway and both helms
• Hardtop with (2) aft fixed single-glazed panels
• White carbon-reinforced hardtop arch
• White fiberglass hardtop with stainless steel supports
• Handholds on both aft sides of hardtop arch
• (8) Harken 3207 folding 6mm jackline padeyes
• Protective covers for winches, helms, wheels, stern seats, deck hatches and cockpit table
• Pair of handholds beneath hardtop
• Spray shield
• Hylas-selected exterior upholstery

Hatches and Deck Lockers

• Forepeak deck locker forward of collision bulkhead
• Segmented primary and secondary anchor-chain/rode storage
• Separate sail locker with fender and dock-line storage
• Stainless steel forepeak access ladder
• Direct overboard forepeak drainage
• Full-beam lazarette with watertight clamp latches and port/starboard deck access
• Automatic Whale Gulper 320 24V lazarette bilge pump with manual override and high-water alarm
• Recessed self-draining liferaft locker aft of port helm
• Vented LPG deck locker with (2) 20-lb propane cylinders
• LPG regulator, dedicated plumbing, solenoid, controller and alarms for stove and BBQ
• (7) Manship stainless-framed acrylic deck hatches
• (4) opening cockpit-facing portlights
• Stainless steel hanging rails in sail locker and aft lazarettes
• Steering-system access through transom garage

Ground Tackle and Mooring

• Maxwell RC12 24V vertical windlass
• Bow foot controls
• AA560 windlass controller/chain counter at helm
• Ultra UA45 44kg/100-lb polished 316L stainless steel primary anchor
• Ultra Flip Swivel
• 300′ of 3/8″ high-tensile G4 galvanized anchor chain
• 1/2″ and 3/8″ galvanized anchor shackles
• Stainless steel bowsprit with (2) self-launching anchor receivers
• Divided primary and secondary anchor locker
• Direct access to windlass motor for servicing
• New England Ropes premium dock lines: (2) 25′ x 3/4″ bow lines, (2) 35′ x 3/4″ stern lines and (2) 50′ x 3/4″ spring lines
• (4) 12″ x 34″ Taylor fenders

Exterior Plumbing

• Hot/cold freshwater stern shower with handheld sprayer
• Freshwater washdown connections at bow and stern
• Saltwater washdown system with Jabsco Par-Max 6 pump and bow/stern quick-connect fittings
• Freshwater shore connection at transom

Sails and Rigging

Mast and Spars

• Solent-rigged Seldén aluminum 2-spreader mast
• Seldén electric Synchronized Main Furling (SMF) in-mast furling system
• Seldén boom
• Internal masthead wiring conduit
• (3) Antal mast-mounted halyard tension tracks
• Dedicated radar conduit
• Masthead Windex-style wind indicator

Vang, Backstay and Furling

• Twin Seldén HT-W12/14 black-anodized hydraulic backstay tensioners with 480mm stroke
• Seldén HV black-anodized hydraulic boom vang with 340mm stroke
• Seldén manual 4-function hydraulic control panel adjacent to helm
• Seldén 404E electric genoa furler
• Seldén 404E electric self-tacking jib furler

Standing and Running Rigging

• Discontinuous 316 stainless steel 1×19 wire standing rigging
• Sta-Lok mechanical standing-rigging fittings
• Side-sheeting arrangement eliminating central pedestal winch
• In-boom preventer led to cockpit
• SMF mainsail outhaul led to Seldén E52 smart cockpit winch with manual override
• Spectra-cored main, genoa, jib, spinnaker and spare halyards
• Genoa, jib and mainsheets led close to helm stations
• Mainsheet system with (3) Harken 100mm Black Magic blocks and (2) Harken 76mm high-load padeyes
• Pair of Harken R32 1.5m outboard genoa tracks with adjustable pin-stop cars
• Harken Black Magic 100mm genoa footblocks
• Vertically sheeted self-tacking jib system with (2) Harken 100mm blocks
• Coupled high-load jib cars on 3m Harken R32 track with adjustable pin stops
• Harken 100mm jib footblocks and 16mm fairleads
• Harken 100mm Black Magic redirect footblocks allowing selection of primary or secondary winches

Winches

• (2) electric Antal 66 XT chromed 2-speed self-tailing primary winches
• Seldén Synchronized Main Furling cockpit winch
• (2) electric Antal 66 XT chromed 2-speed self-tailing secondary winches
• Push-button electric winch controls at each winch
• (2) winch handles

Sails

• North Sails NPL Tour Xi offshore cruising sail package
• North Sails NPL Tour Xi NorLam white in-mast furling mainsail with (4) partial vertical battens
• North Sails NPL Tour Xi NorLam white 140% furling genoa
• North Sails NPL Tour Xi NorLam white furling Solent/self-tacking jib
• White Sunbrella UV covers for genoa, jib and mainsail tack

Mechanical Equipment

Steering

• Twin spade rudders positioned above the plane of the keel for grounding protection
• Jefa torque-tube and transmission gearbox steering system

Engine Room

• Full-height engine-room access from navigation station
• Multiple additional machinery service-access points
• CE-approved fire-retarding and noise-dampening engine-room insulation
• (2) Jabsco continuous-duty 250 cu. ft./min engine-room extraction blowers with 4″ exhausts
• Electric oil-change pump servicing engine, generator and transmission

Fuel System

• Dual Racor 500 main-engine fuel filtration system
• Fuel-filter vacuum gauge
• Water-contamination alarm
• Independent filtration, polishing and bypass capability
• Flame guards beneath fuel filters
• Walbro engine fuel-transfer pump
• Simarine fuel-tank monitoring at navigation station

Freshwater System

• (2) independent Marco UP14/E 24V freshwater pumps plumbed in parallel for redundancy
• Torrid 17-gallon stainless steel water heater, 110V AC and engine heated
• Pre-plumbing and wiring beneath forward VIP berth for future watermaker installation
• Headhunter 4.4-gallon polypropylene-lined steel pressure accumulator
• Simarine freshwater-tank monitoring at navigation station

Black and Gray Water Systems

• Dometic Sealand holding-tank ventilation filter
• Gray-water collection system designed to minimize water and moisture in bilge
• Forward gray-water sump with (2) Gulper pumps serving forward sink, shower and air-conditioning condensate
• Direct-overboard anchor-locker and sail-locker drainage
• Galley gray-water sump with Gulper pump serving galley sink and refrigerator drain
• Aft gray-water sump with Gulper 320 pump serving master-head sink, shower and aft air-conditioning condensate

Thrusters

• Side-Power E170/250TC-24V variable-speed bow thruster
• Twin 5-blade counter-rotating bow-thruster propellers
• 10.7 hp bow-thruster output at 21V
• Bow-thruster controls at both helms
• Side-Power SRLP170/250T retractable variable-speed stern thruster
• 170kg stern-thruster thrust
• RCS-20E stern-thruster remote-control kit

Air Conditioning

• Termodinamica HVAC system
• (2) 18,000 BTU saloon units providing 36,000 BTU total
• (1) 18,000 BTU unit serving forward VIP cabin, guest cabin and forward head
• (1) 18,000 BTU unit serving aft master cabin and aft head
• HVAC condensate drains routed to gray-water system

Bilge System

• Rule 4000 24V primary bilge pump rated at 4,000 GPH
• Automatic float switch, high-water alarm and manual override for primary bilge pump
• Whale Gulper 320 24V secondary bilge pump
• Whale Gulper 320 24V transom-garage bilge pump with automatic float switch, high-water alarm and manual override
• Whale Gusher 10 manual cockpit bilge pump rated up to 17 GPM

Safety Equipment

• Hylas Signature watertight bow and stern sections
• Reinforced and sealed collision bulkhead forward of VIP cabin
• Recessed self-draining liferaft locker
• Stainless steel folding tether padeyes at companionway and both helms
• (8) Harken folding jackline padeyes
• Fireboy 200 cu. ft. automatic engine-room fire-suppression and alarm system
• Fireboy remote fire-system panels at cockpit and navigation station
• Fireboy Halotron 5-lb handheld fire extinguisher with engine-compartment fire port
• (3) Hygrapha 5-lb dry-chemical handheld fire extinguishers
• Fire blanket in galley
• Fireboy-Xintex P-2BS-R propane/CNG fume detector with (2) sensors for stove and BBQ
• Fireboy-Xintex SS-775 smoke and fire detector in galley
• LPG solenoid, controller and alarms
• Automatic and manual bilge pumping systems
• High-water alarms for primary bilge and transom-garage systems
• 32″ stainless steel stanchions and boarding gates
• Stainless steel handrails
• Twin spade rudders protected above plane of keel

Engine Info

• Yanmar 150 hp marine diesel engine
• HS Hydraulic 2.43:1 reduction gearbox
• Yanmar engine control panels at both helms
• Engine alarms for low oil pressure and high coolant temperature
• Tachometer
• Engine-hour meter
• Voltage display
• Engine temperature gauge
• Oil-pressure gauge
• Custom engine water separator for quieter operation and protection against flooding
• Custom raised exhaust elbow for protection against engine flooding
• Bruntons Varifold 4-blade 23″ folding propeller
• Aqualoy A22 1.75″ stainless steel propeller shaft
• PYI PSS Pro dripless shaft seal, model 03-134-212
• Nickel Aluminum Bronze P-bracket with substantial stainless steel backing plate and solid fiberglass hull reinforcement
• Bruntons Sigma Drive SD225
• Spurs 1-3/4″ shaft-line rope cutter

Tankage

• Fuel: 286 US gallons total
• (2) independent 143-gallon diesel tanks
• Fuel tanks constructed of 316L stainless steel
• Fuel tanks located beneath saloon floor aft of freshwater tanks
• Threaded fuel-tank inspection ports for access and manual dipstick measurements
• Large fuel-tank maintenance access ports for cleaning
• Fresh Water: 260 US gallons total
• (2) independent 130-gallon freshwater tanks
• Freshwater tanks constructed of 316L stainless steel
• Freshwater tanks located beneath saloon floor forward of fuel tanks
• Threaded freshwater-tank inspection ports for access and manual dipstick measurements
• Freshwater-tank maintenance access ports for cleaning
• Black Water/Holding: 63 US gallons total
• 23-gallon forward holding tank
• 40-gallon aft holding tank
• Dedicated fiberglass holding tank for each head
• (2) 20-lb LPG/propane cylinders in dedicated vented deck locker

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Listing MLS by Yachtr.com

Listing data via Yachtr.com MLS, as published by the broker.

Listed by BVI Yacht Sales; specs and price as published by the broker — on the market here since September 2026. Confirm details with the broker directly.
